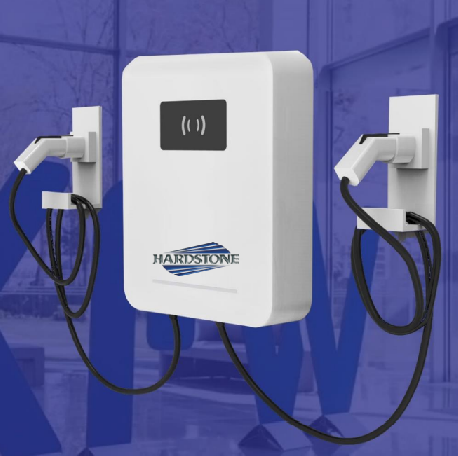

7KW 家用充電樁

HSE702

7KW 家用充電樁

會員價 $58000 $65000

• 居家用戶，或商場用戶最經濟的選擇
• 可選配有線/ 無線網絡，連接控制中心達成遠程管理
• 適用輸入範圍：200Vac ~ 240Vac
• 時尚外型，可客製化機身顏色
• 符合戶外的 IP55 設計
• 可遠端更新程式
• 充電界面：SAE J1772(Type 1) / IEC 62196-2(Type 2)

數量:

施工安裝費用依現場狀況報價

最適合住宅，社區和商業區交流充電器
適用輸入範圍：200~240Vac
時尚，符合人體工程學和可定制的設計
符合戶外的 IP55 設計
可遠端更新程式
可經由有線 / 無線的方式連到後台
可選用 RFID 讀卡器，用於用戶識別和管理
充電界面：SAE J1772(Type 1) / IEC 62196-2(Type 2)
OCPP 1.6 JSON

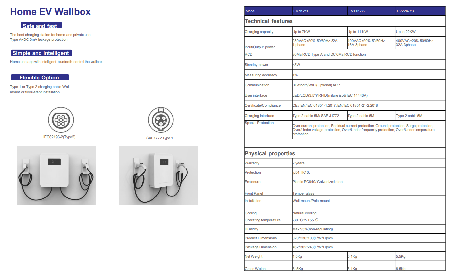

Specification

HS series
Model No.		HSE702C0E/EA702C1E	HSE702C1U	HSE702C1
AC Input	Input Rating	200~240Vac/Single phase
	AC Input Connection	L/N/PE	L1/L2/GND	L/L1,N/L2,PE
	Max. Input Current (A)	32A
	Frequency (Hz)	50Hz/60Hz
AC Output	Max Output Current	32A
User Interface & Control	Display	5 inch LCD
User Interface & Control	Display Information	RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa™, Mifare)
Communication	External	LAN(standard)/4G(optional) or Wi-Fi(optional)
Communication	Internal	OCPP 1.6 JSON
Environmental	Operating Temperature (°C)	-30˚C~50˚C
	Humidity (%)	Max. 90% RH
	Altitude (m)	≦ 2000m
	IP Level	IP55	NEMA TYPE 3R	IP55
	Cooling method	Natural Cooling
Mechanical	Dimension (WxDxH mm)	290 x 120 x 410mm
	Weight (kg)	≦ 8Kg (With Plug) ; ≦ 5.5Kg (With Socket)
	Cable Length(m)	5m
Protection	RCD/CCID	RCD Type B	CCID 20	RCD Type A 30 mA
	Input Side	UVP, OVP, Surge protection, Ground fault
	Output Side	OCP, Control pilot fault, Residual current protection
	Internal	OTP, Relay welding detection, CCID self-test, MCU function fault detection
Regulation	Certificate	IEC 61851-1, IEC61851-22	UL2594, UL2231-1/-2	CNS 15511-1, CNS 15511-2, CNS 15511-3, CNS 15511-22
	Safety	CE	UL / cUL	CNS
	Charging Interface	IEC 62196-2：2016 Type 2 Plug or socket	SAEJ1772 Type 1 Plug	SAEJ1772 Type 1 Plug
